Trusted Assistant in Professional Photovoltaic Installation: A Detailed Look at the A-2546 MC4 Crimping Tools Crimper with Cutting Function (26-10AWG)

Product Description

This is an industrial quality Multi-Contact Tool for Crimping MC4 Male and Female Solar Contacts. Satisfy different sizes of solar panel Pv cables(2.5/4/6.0mm2). Interchangeable locator for precision postitioning of terminals. It is very easy to use.

Specifications:
Capacity:2.5-6.0mm²
AWG:26-10AWG
Length:270mm
Weight:0.74Kg

Package Included:1 x A-2546B MC4 PV Solar Crimping tool.

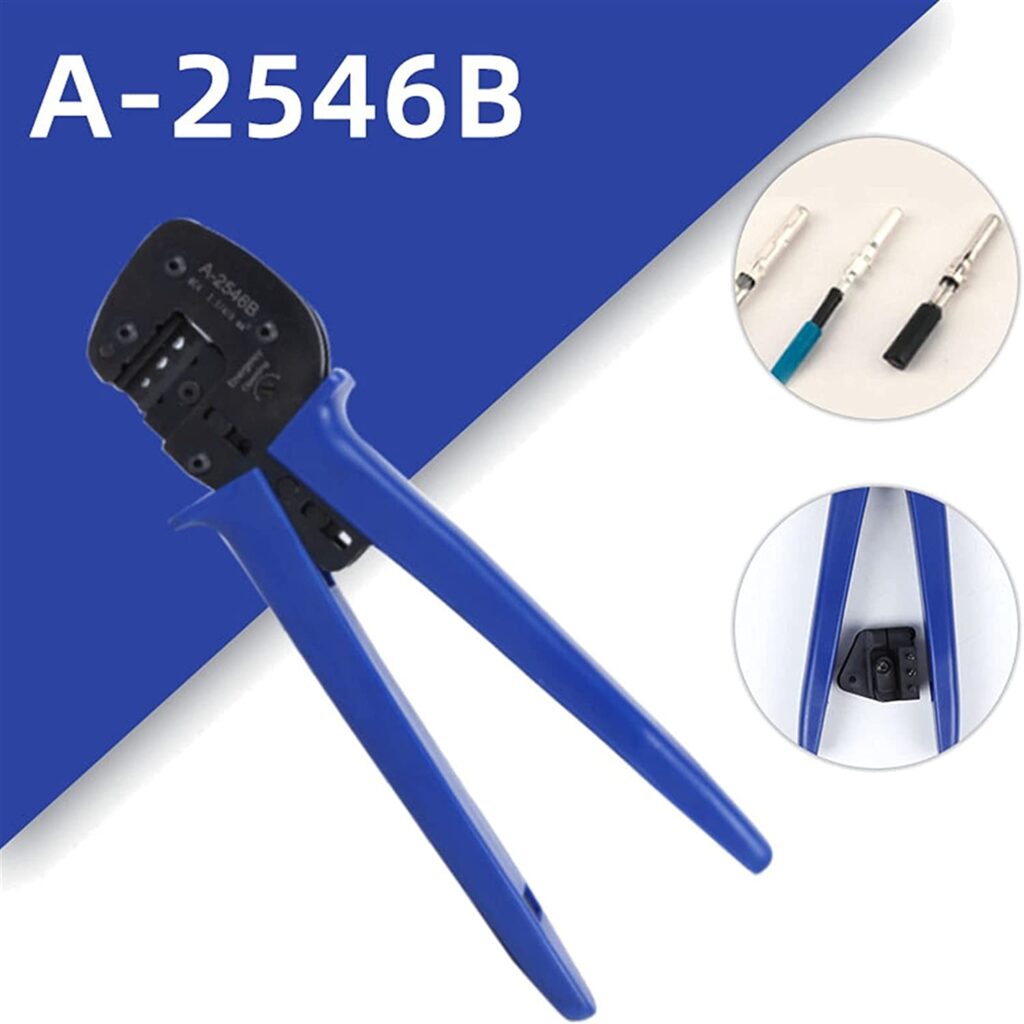

I. Product Overview: What is the MC4 A-2546B?

The MC4 A-2546B is a manual tool specifically engineered for crimping the metal terminals of standard MC4 connectors. Typically constructed from high-strength, lightweight alloy materials and featuring ergonomically designed handles, it aims to provide installers with an efficient, labor-saving, and precise crimping experience. This tool is essential for PV installation engineers, technicians, and seasoned DIY enthusiasts.

II. Core Features and Design Characteristics

1. Precision-Engineered Crimping Die
   • The heart of the MC4 A-2546B is its built-in crimping die, tailored specifically for MC4 connector terminals. This die ensures that force is applied precisely to the correct areas of the terminal during crimping, creating a secure mechanical connection and an excellent electrical contact. This effectively prevents issues like increased contact resistance and heat generation from a loose crimp, or terminal damage from an overly tight crimp.
2. Multi-Functional Integrated Design
   • As a professional-grade tool, it often includes more than just the crimping function. Most MC4 A-2546B crimpers also integrate:
     • Wire Stripping Function: Features an adjustable blade for precisely stripping cable insulation to expose the correct length of conductor.
     • Cutting Function: A robust cutting jaw for easily sheathing PV cables from 2.5mm² to 6mm².
     • Hex Screw Crimping: Some models include a hexagonal socket at the handle end for tightening the securing screws on MC4 connector housings.
   • This “all-in-one” design greatly facilitates on-site work, allowing installers to complete the entire process of cable preparation, crimping, and assembly without needing multiple tools.
3. Ergonomic Handles
   • The tool incorporates curved, non-slip handles that not only provide a comfortable grip but also offer greater mechanical advantage during crimping, making the operation significantly easier. This helps reduce hand fatigue even during prolonged, high-frequency use.
4. High Compatibility
   • It strictly adheres to the industry-standard MC4 connector specifications, ensuring perfect compatibility with the vast majority of standard MC4 male and female terminals (including common cable sizes like 2.5mm², 4mm², and 6mm²).

III. Why Choose a Professional MC4 Crimping Tool?

Using pliers or non-dedicated tools for crimping MC4 terminals is strongly discouraged and highly dangerous. The value of the MC4 A-2546B lies in its ability to:

• Ensure Electrical Safety: Precise crimping force minimizes contact resistance, preventing risks of overheating, arcing, and even fire caused by poor connections at the source.
• Guarantee Mechanical Strength: A professional crimp fuses the terminal and conductor into one, allowing it to withstand certain levels of pull force and vibration, adapting to harsh outdoor environments and ensuring the connection remains secure for decades.
• Achieve Waterproof Seal: A correctly crimped terminal is essential for forming a complete IP67/IP68 rated waterproof and dustproof seal when assembled with the MC4 plastic housing. Improper crimping can compromise this seal.
• Improve Work Efficiency: The integrated design streamlines the operation, standardizing the process and significantly boosting installation speed and overall work efficiency.

IV. Brief Introduction to Standard Operating Procedure

Using the MC4 A-2546B to assemble a complete MC4 connector typically involves the following steps:

1. Strip the Wire: Use the tool’s stripping notch to remove approximately 6-7mm of cable insulation.
2. Crimp the Terminal: Place the MC4 metal terminal over the exposed conductor and insert it into the corresponding die of the crimping tool. Squeeze the handles firmly until they close naturally (often featuring a stop point).
3. Assemble the Housing: Insert the cable with the crimped terminal into the MC4 connector plastic housing until a ‘click’ is heard, indicating it is locked.
4. Secure the Cable: Use the hexagonal socket at the tool’s end to tighten the strain relief screw on the back of the connector to secure the cable.
5. Test the Connection: Use a multimeter to perform continuity and insulation resistance tests, ensuring the connection is correct and fault-free.

V. Maintenance and Precautions

• Keep the crimping dies clean to prevent dust and metal debris from affecting crimping precision.
• Regularly inspect the tool for signs of wear or damage.
• During crimping, ensure the terminal is correctly positioned in the die to avoid misalignment.
• Use it only for the cable and terminal specifications it was designed for.

Conclusion

In today’s world, which is increasingly focused on green energy, the reliability of photovoltaic systems is paramount. The MC4 A-2546B Wire Crimping Tool, acting as the “gatekeeper of quality” for connection points, provides a solid guarantee for every wire connection with its professional design, comprehensive functionality, and reliable performance. Investing in a professional crimping tool is an investment in the long-term safety and peace of mind of a PV project. It is an indispensable star product in the toolbox of every meticulous PV installer
